Description
Overview

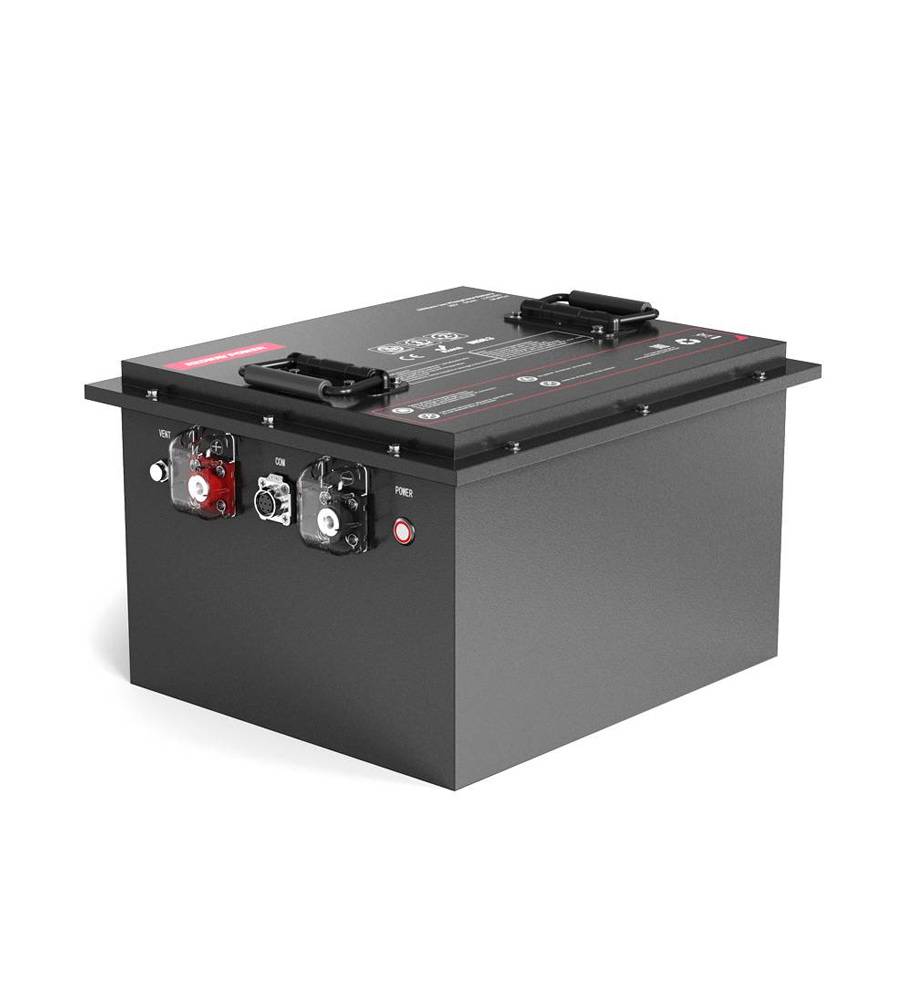

The 36V 80Ah LiFePO4 Golf Cart LiFePO4 Battery is a compact and efficient energy storage solution designed to meet the power demands of various applications. With a nominal voltage of 38.4V and a capacity of 80Ah, it delivers 3.07 kWh of energy. Its robust design and advanced features make it ideal for energy storage in both residential and commercial settings. With an impressive cycle life of over 5000 cycles at 80% DOD, this battery ensures long-lasting performance and value for your investment.
Key Features
- Compact Energy Storage: The 36V 80Ah LiFePO4 Golf Cart Battery provides 3.07 kWh of energy with a nominal voltage of 38.4V, ideal for small to medium-sized energy storage systems.
- Long Cycle Life: With over 5000 cycles at 80% DOD, this battery offers longevity and durability, reducing the need for frequent replacements.
- Wide Temperature Range: This battery can operate in a wide temperature range, from -20°C to 65°C for discharging and 0°C to 60°C for charging, making it adaptable to various climates.
- Peak Discharge Current: The RG3880 can handle a peak discharge current of up to 200A for 10 seconds, making it suitable for applications requiring short bursts of high power.
- Advanced Battery Management System (BMS): Equipped with a JBD/DALY BMS, the RG3880 ensures safe operation, protecting against overcharging, overdischarging, and temperature fluctuations.
- IP66 Rating: With an IP66 rating, the RG3880 is dust-tight and resistant to water ingress, ensuring reliable performance even in harsh conditions.
- Scalable Design: The battery can be connected in parallel with up to 4 units, providing flexibility to scale up your energy storage capacity as needed.
- Optional Upgrades: The RG3880 offers various upgrade options, including Bluetooth, App integration, 4G, GPS, active balance systems, cooling fans, and more, for enhanced monitoring and control.
- Warranty & Support: This battery comes with a 3-year warranty, ensuring peace of mind and reliable customer support throughout its lifecycle.
Product Description
The 36V 80Ah LiFePO4 Golf Cart LiFePO4 Battery is engineered for high performance and durability in small to medium-scale energy storage applications. It provides a nominal energy of 3.07 kWh, making it ideal for off-grid systems, backup power, and solar energy storage. With a cycle life of over 5000 cycles at 80% DOD, this battery is designed to deliver long-term value, offering consistent performance year after year.
The battery features a robust metal shell that ensures durability and protection against external elements. With its IP66 rating, the RG3880 is resistant to dust and water ingress, making it suitable for installation in various environments, including outdoor and industrial settings. The compact design (385 x 338 x 245 mm) allows for flexible installation, even in space-constrained areas.
Equipped with an advanced BMS, the RG3880 guarantees safe and efficient operation. It protects the battery from overcharging, overdischarging, and temperature extremes, providing peace of mind to users. Additionally, the battery supports a peak discharge current of up to 200A for 10 seconds, making it capable of meeting high power demands during short bursts.
Additional Features
- Self-Discharge Rate: The RG3880 has a low self-discharge rate of just 3% per month, ensuring that it retains its charge over extended periods of inactivity.
- Flexible Upgrades: Choose from a range of optional upgrades to customize the RG3880 to suit your specific needs, such as Bluetooth connectivity, 4G, GPS, self-heating, LCD display, and more.
- Efficient Communication: The RS485 communication protocol enables seamless integration with energy management systems, offering remote monitoring and control capabilities.
- Certifications: The RG3880 is certified by UL 1642, IEC 62619, CE, MSDS, and UN38.3, ensuring that it meets global safety and performance standards.
- Scalable and Customizable: With the option to connect up to 4 units in parallel, the RG3880 offers scalability for growing energy storage needs. OEM/ODM services are available for custom branding and packaging.
How Does the 36V 80Ah LiFePO4 Golf Cart Battery Improve Performance?
The 36V 80Ah LiFePO4 golf cart battery delivers 3.07 kWh of energy with a nominal voltage of 38.4V and 80Ah capacity, providing long-lasting power, enhanced safety, and a driving range of 36 to 46 km per charge. Its advanced Battery Management System (BMS) ensures protection and longevity, making it ideal for golf carts and electric vehicles.
What Are the Technical Specifications of the 36V 80Ah LiFePO4 Golf Cart Battery?
This battery features a nominal voltage of 38.4 volts and a capacity of 80 ampere-hours, storing 3.07 kWh of energy. It supports a maximum continuous discharge current of 80A and a peak discharge current of 200A for short bursts. The battery weighs approximately 31 kg and measures 385 x 338 x 245 mm. It has an IP67 rating, ensuring dust-tight and waterproof protection.
Technical Specifications Chart
| Specification | Value | Unit | Description |
|---|---|---|---|
| Nominal Voltage | 38.4 | V | Standard operating voltage |
| Nominal Capacity | 80 | Ah | Battery capacity |
| Energy Storage | 3.07 | kWh | Total energy capacity |
| Max Continuous Discharge | 80 | A | Sustained current output |
| Peak Discharge Current | 200 | A | Short-term high current output |
| Weight | 31 | kg | Battery weight |
| Dimensions (L×W×H) | 385×338×245 | mm | Physical size |
| Protection Level | IP67 | – | Dust and water protection |
How Does the Battery Enhance Golf Cart Performance and Range?
The high energy density and stable voltage output of the 36V 80Ah LiFePO4 battery extend golf cart driving range to 36–46 km per full charge. Its fast charging capability (standard charge current 22A) reduces downtime, while the lightweight design improves vehicle efficiency and handling.
What Safety Features and Battery Management Systems Are Included?
Equipped with a smart BMS, the battery protects against overcharge, over-discharge, overcurrent, short circuit, overheating, and temperature extremes. The BMS also balances cell voltage automatically to extend battery life. The robust metal casing and IP67 rating ensure durability under harsh environmental conditions.
What Is the Cycle Life and Warranty of the Battery?
The battery offers over 6,000 charge cycles at 80% depth of discharge, translating to a design life of approximately 20 years. It comes with a 5-year warranty from LiFePO4-Battery-Factory, providing confidence in long-term reliability and performance.
What Are the Typical Applications of the 36V 80Ah LiFePO4 Battery?
Common uses include golf carts, electric scooters, electric tricycles, club cars, and other light electric vehicles. Its versatility also extends to small electric boats and portable power systems.
How Does It Compare to Lead-Acid Batteries?
Compared to lead-acid batteries, the LiFePO4 battery is lighter, offers 3 to 5 times longer cycle life, charges faster, and maintains higher voltage stability throughout discharge. It requires minimal maintenance and is environmentally friendlier due to non-toxic materials.
What Customization and OEM Options Are Available?
LiFePO4-Battery-Factory offers OEM and ODM services, including custom voltage, capacity, BMS features, and communication protocols such as Bluetooth, GPS, and CAN-bus. Optional upgrades include self-heating, solar MPPT integration, and LCD displays.
How Does Temperature Affect the Battery’s Performance?
The battery operates efficiently between -20°C and 65°C. Extreme cold may reduce capacity temporarily, but the advanced BMS and optional self-heating features help maintain optimal performance in varying climates.
What Are the Dimensions and Weight for Integration?
With compact dimensions of 385 x 338 x 245 mm and a weight of 31 kg, the battery fits easily into standard golf cart compartments without requiring significant modifications.
How Does LiFePO4-Battery-Factory Support Bulk Orders and Logistics?
LiFePO4-Battery-Factory supports wholesale and bulk orders with flexible MOQ, fast production lead times (7-14 days for samples, 35-60 days for mass production), and multiple shipping options including FOB, EXW, CIF via sea, air, or land.
How Should the Battery Be Maintained for Longevity?
Maintenance is minimal: keep terminals clean, avoid deep discharges below 20%, store at partial charge if unused for extended periods, and ensure proper ventilation. No equalization charging is needed, reducing maintenance complexity.
