Description
Overview

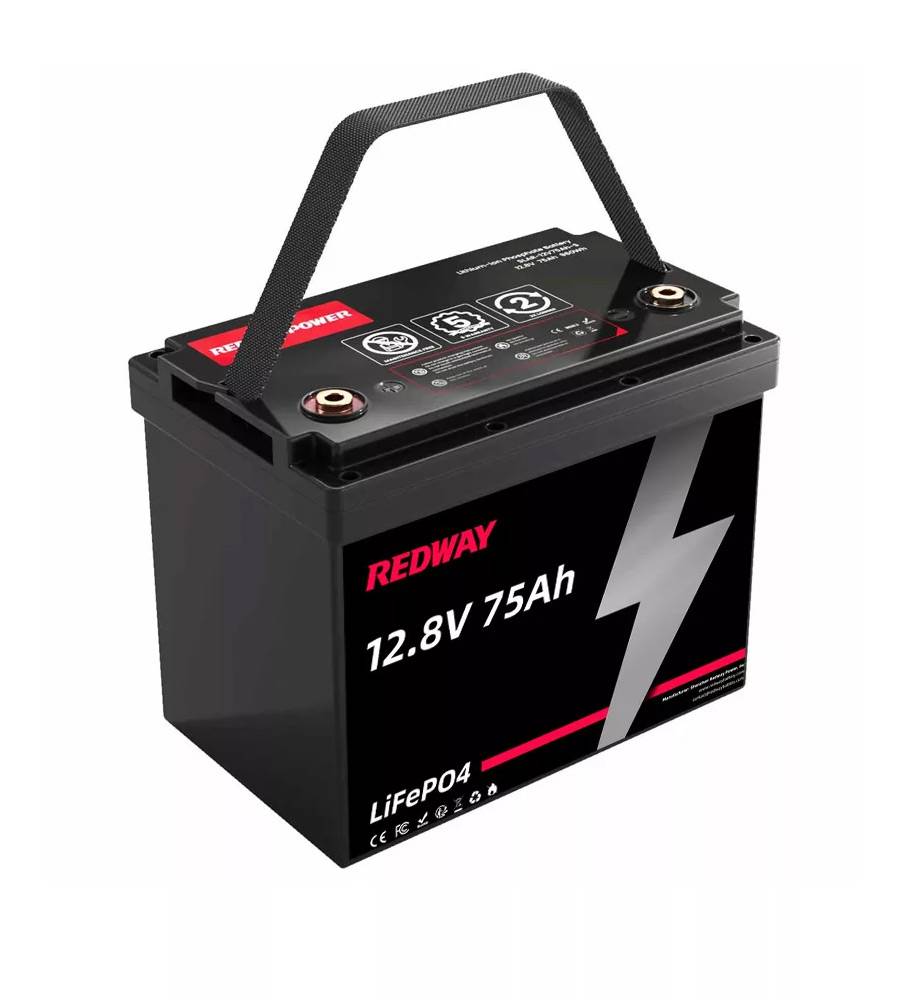

The 12.8V 75Ah LiFePO4 Battery delivers 960Wh of high-capacity power in a standard BCI Group 24 form factor. As a professional lithium battery manufacturer, we’ve engineered this solution with 5,000+ cycles and IP65 protection, offering exceptional value for OEM applications requiring drop-in lead-acid replacement with superior performance.
Key Features
- High-Capacity Energy: 960Wh output in compact Group 24 size (260×168×210mm)
- Powerful Performance: 75A continuous charge/discharge current
- Ultra-Lightweight: Only 6kg (13lbs) – 70% lighter than comparable lead-acid
- Smart Monitoring: Optional Bluetooth/APP/4G remote connectivity
- Scalable Design: Supports up to 6 parallel connections (5.76kWh total)
Technical Specifications
- Voltage Range: 10V-14.6V (12.8V nominal)
- Temperature Range: -20°C~65°C operation
- Cycle Life: >5,000 cycles at 80% DOD
- Self-Discharge: Just 3% per month
- Terminals: Heavy-duty M8 connectors
Advanced Battery Management
- Premium BMS Options: JBD or DALY with comprehensive protection
- Active Balancing: Optional for optimal cell performance
- Multiple Protocols: RS485/RJ45 connectivity available
- Thermal Options: Self-heating or cooling fan
Customization Options
- Branding: Custom silkscreen, labels, laser engraving
- Display: Optional SOC LCD for real-time monitoring
- Protection: Circuit breaker or power switch
- Special Features: Solar MPPT integration
Industry Applications
- Marine and RV power systems
- Solar energy storage
- Electric mobility solutions
- Industrial backup power
Quality Assurance
- 10-year design life with 3-year warranty
- Global certifications: UL, IEC, CE, UN38.3
- OEM-ready with custom solutions
- ABS casing with IP65 protection
