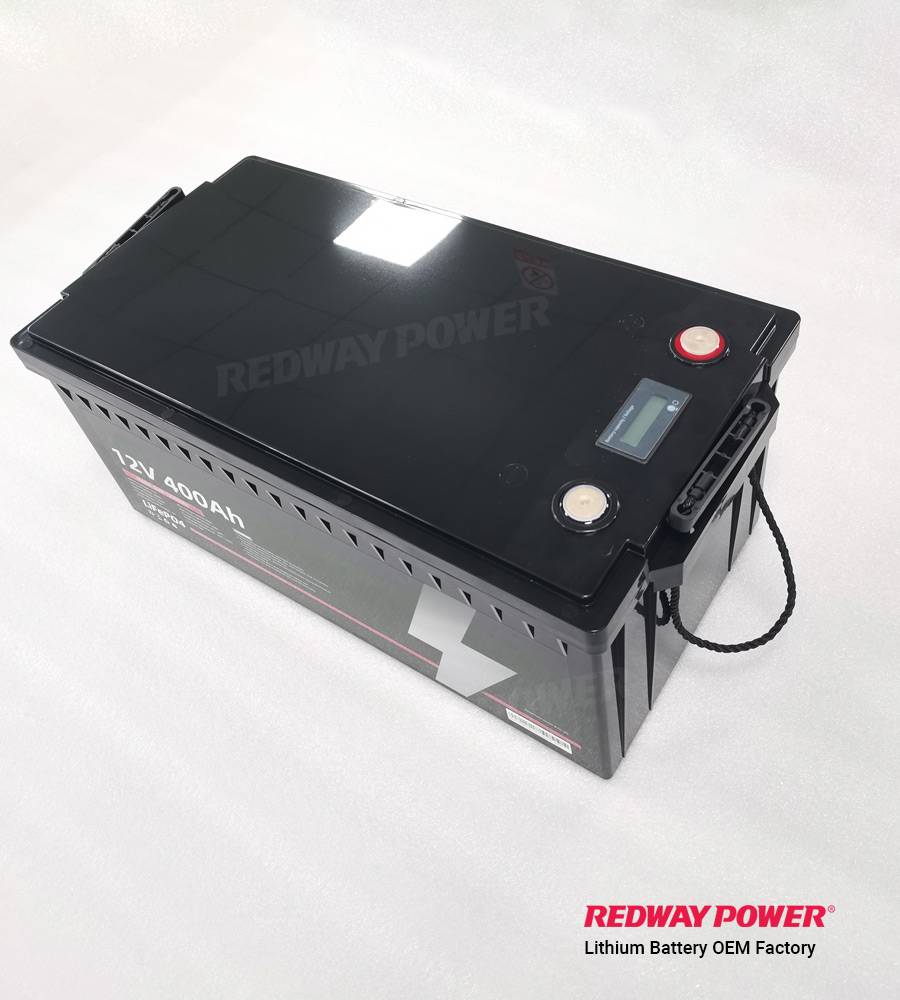

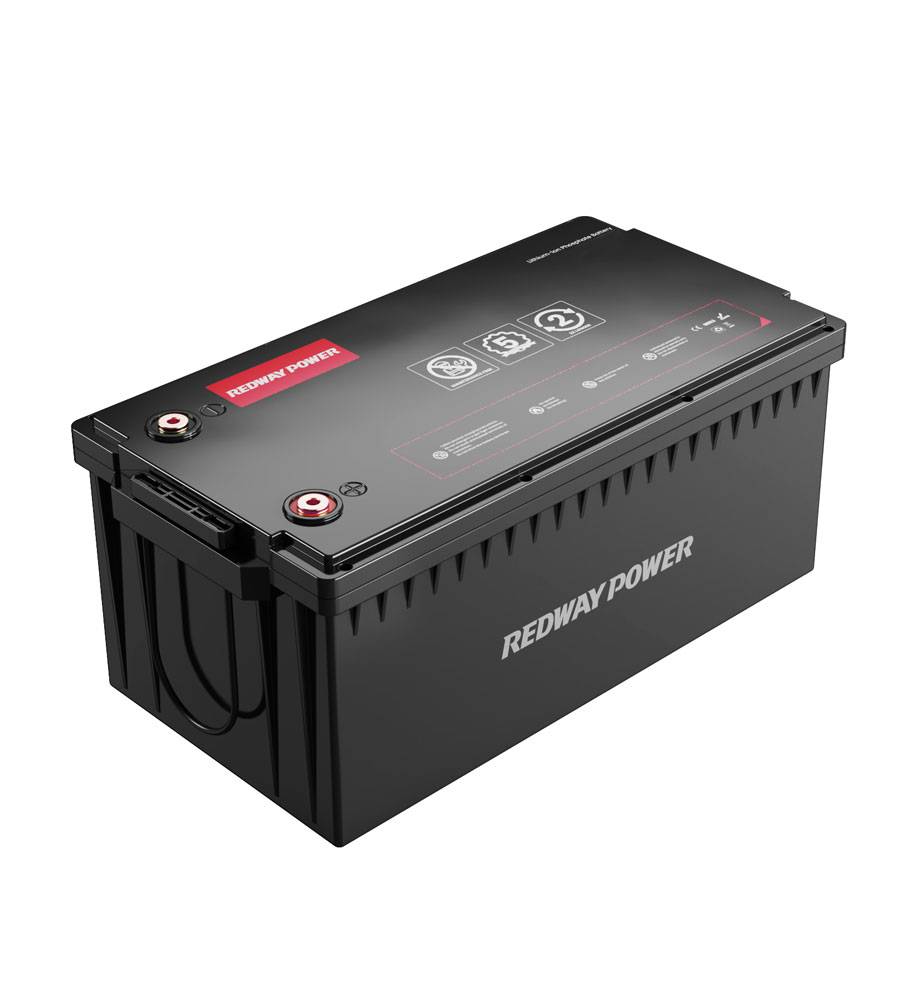

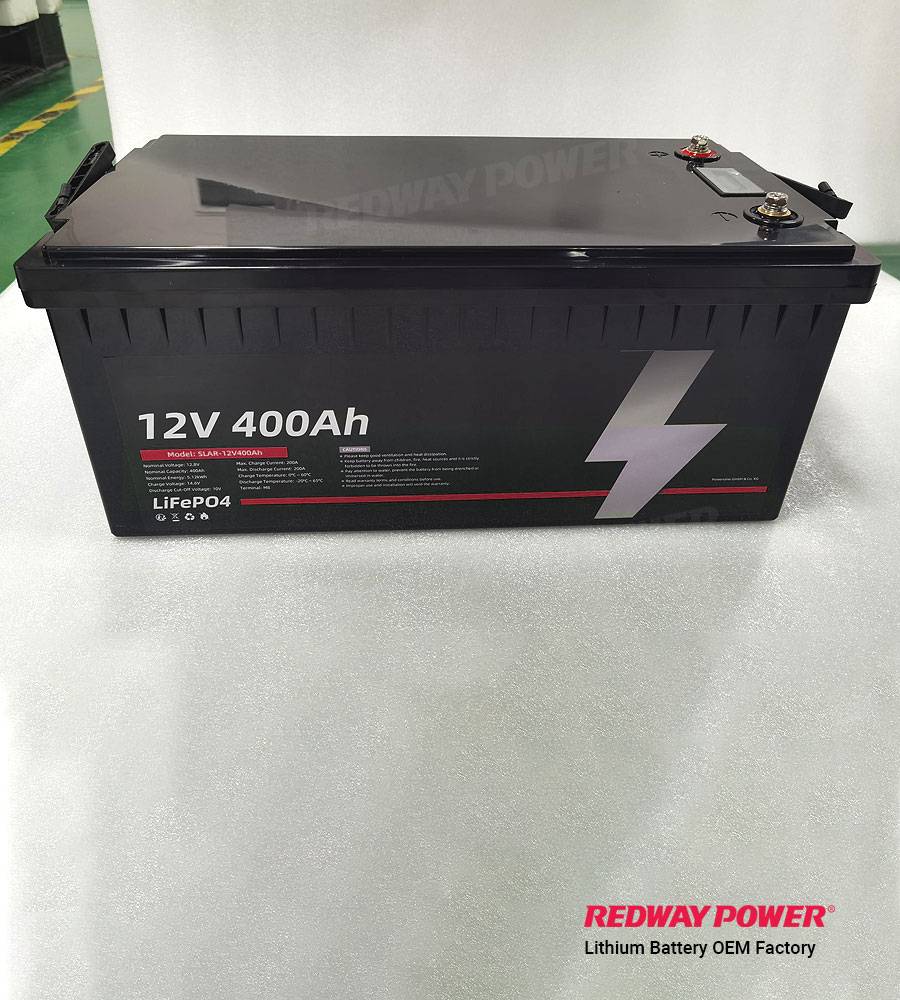

12V 400Ah LiFePO4 Battery

• Cell: LiFePO4 (LFP)
• MOQ: 5
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: Redway, Huizhou, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Description

Meet the Redway Power 12V 400Ah Lithium Battery, designed for high-capacity energy storage in demanding applications like off-grid power solutions, RVs, and marine use. Utilizing advanced LiFePO4 technology, this robust battery delivers exceptional performance and reliability, making it an ideal choice for OEM, ODM, and wholesale buyers.

Key Features:

  • High Capacity: With a nominal capacity of 400Ah and energy output of 5.12kWh, this battery is perfect for powering larger systems and appliances.
  • Long Cycle Life: Designed for over 4000 cycles at 80% Depth of Discharge (DOD), ensuring longevity and cost-effectiveness.
  • Wide Operating Temperature Range: Functions efficiently in temperatures from -20°C to 60°C, suitable for various environments.
  • Advanced Battery Management System (BMS): Provides protection against overcharge, over-discharge, and short circuits for enhanced safety.
  • Customizable Options: Available for OEM/ODM projects, allowing tailored specifications to meet your unique requirements.

Product Description:

The Redway Power 12V 400Ah Lithium Battery is engineered for those who require reliable and efficient energy solutions in a high-capacity format. With a nominal voltage of 12.8V, this battery features premium LiFePO4 cells that ensure safety and stability. Its dimensions of 523 x 269 x 218 mm (20.6 x 10.6 x 8.6 inches) and weight of approximately 39 kg make it suitable for various applications including RVs, marine vessels, and solar systems.

This battery supports a maximum continuous charge and discharge current of 100A, making it ideal for high-demand situations. The robust construction features an IP65 rating, providing protection against dust and water ingress. Optional functions such as Bluetooth connectivity and an LCD display allow for enhanced monitoring and customization.

Backed by a design life of up to 10 years and compliance with multiple certifications including UL, CE, and RoHS, the Redway Power 12V 400Ah Lithium Battery stands as a trustworthy choice for automotive, renewable energy, marine, and backup power applications. Whether you’re looking to stock up for wholesale distribution or seeking custom solutions for your brand, this battery is your go-to option for superior performance and reliability in the energy sector.

Specifications

12V400Ah Specifications
Lithium Cell LiFePO4 (LFP)
Nominal Voltage 12.8V
Nominal Capacity 400Ah
Nominal Energy 5.12kWh
Max Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max Continues Charge Current 100A
Max Continues Discharge Current 100A
Dimensions [L x W x H] 523 x 269 x 218 mm / 20.6 x 10.6 x 8.6 inches / BCI Group 8D
Weight 39kg / 85.8 lbs
IP Rating IP65
Max Parallel 4
Cycle Life >5000 cycles (DOD 80%)

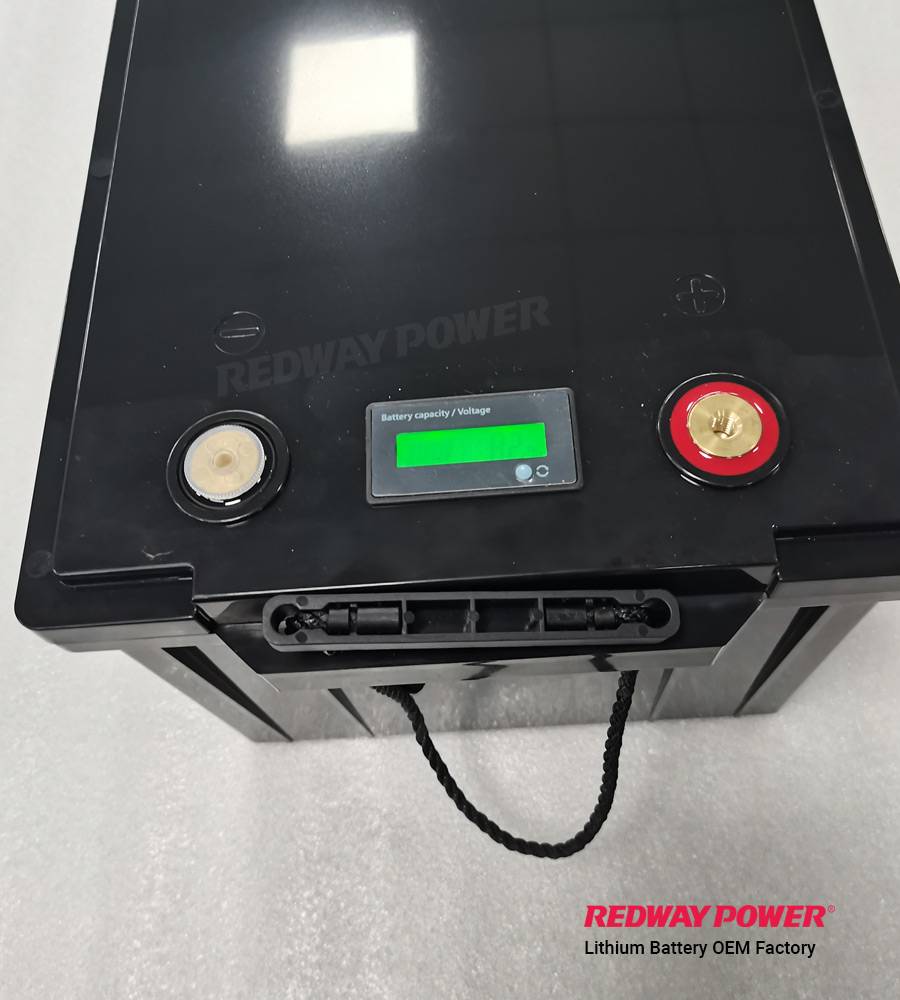

LCD Display Yes
Charge Temperature 0°C ~ 60°C
Discharge Temperature -20°C ~ 60°C
Optional Functions Bluetooth / APP / WiFi / 4G / GPS / Self-heating / RS485 / RJ45 / CAN-bus / RS232 / Active Balance / etc.
Charger Optional
BMS Over current / Over charge / Over discharge / Overload / Over voltage / Low voltage / Overheat / Over temperature / Low temperature / etc.
Terminal M8
Battery Case ABS
Design Life 10 Years
Silkscreen / Label / Laser Logo Yes
User Manual Yes
Customization / OEM / ODM Yes
Certifiaction UL 1642 / IEC 62619 / CE / MSDS / UN38.3
