Description
Overview

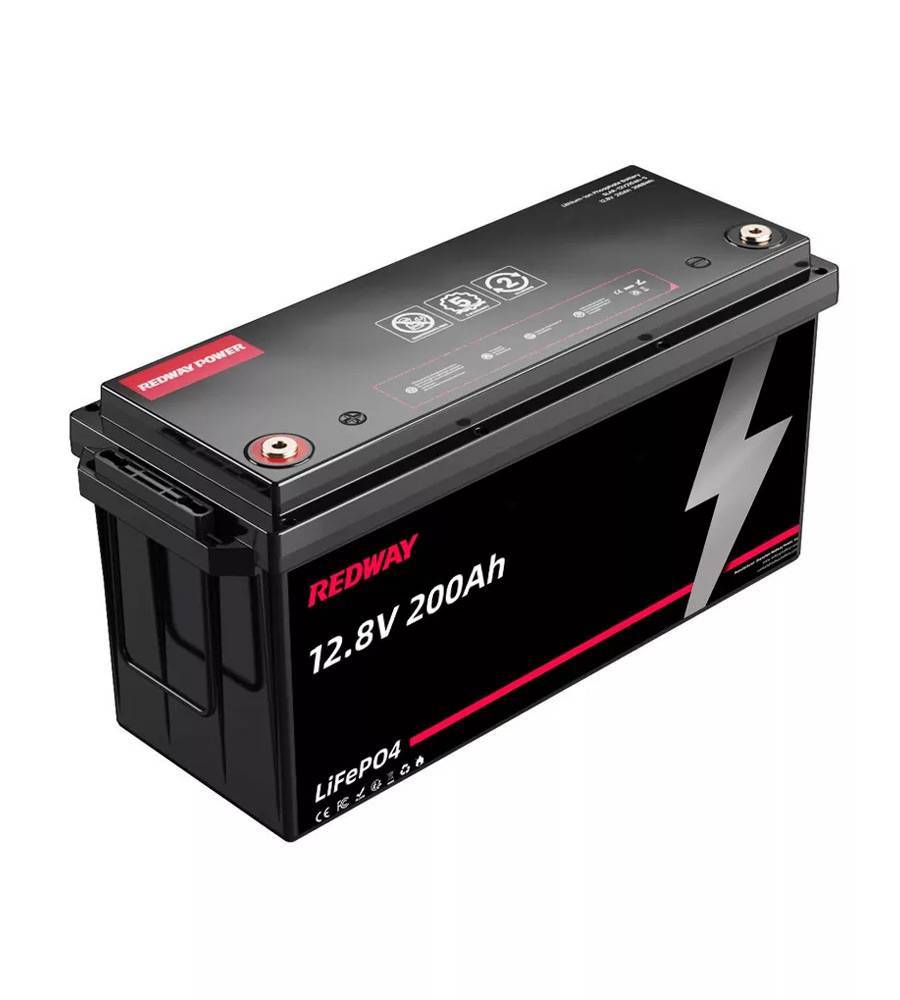

The 12.8V 200Ah LiFePO4 Battery is a high-capacity, long-lasting energy solution designed for demanding applications such as solar storage, electric vehicles, and backup power. With a nominal energy of 2560Wh and an advanced battery management system (BMS), this battery provides reliable and efficient performance with enhanced safety features.
Key Features
- High Energy Storage: With a nominal energy of 2560Wh, this battery delivers powerful performance for various applications.
- Long Cycle Life: Capable of over 5000 cycles at 80% Depth of Discharge (DOD), ensuring long-term reliability.
- Smart BMS Protection: Equipped with JBD/DALY BMS, providing protection against overcharge, overdischarge, short circuits, and thermal issues.
- IP65 Rated: Dust and water-resistant for durability in outdoor environments.
- Temperature Tolerance: Operates in temperatures ranging from -20°C to 65°C for discharge and 0°C to 60°C for charging.
- Scalability: Supports up to 6 parallel connections for increased capacity.
- Compact & Lightweight: With dimensions of 501 x 185 x 242 mm (19.7 x 7.3 x 9.5 inches) and weighing only 18 kg (39.7 lbs), it is easy to integrate into various setups.
- Customizable Features: Optional upgrades include Bluetooth, GPS, 4G, LCD display, and more for enhanced functionality.
Applications
The 12.8V 200Ah LiFePO4 Battery is ideal for:
- Solar Energy Storage
- Backup Power Systems
- Electric Vehicles (EVs)
- Marine & RV Power Solutions
- Off-Grid Applications
- Industrial Equipment
Product Description
The 12.8V 200Ah LiFePO4 Battery offers superior performance, high energy density, and extended cycle life, making it a top choice for energy storage solutions. Built with high-quality lithium iron phosphate (LiFePO4) cells, this battery ensures excellent safety, stability, and efficiency compared to traditional lead-acid batteries.
Designed with an IP65 rating, the battery is protected against dust and water exposure, making it suitable for outdoor applications. The integrated smart BMS actively manages the battery, providing protection from overvoltage, overcurrent, and temperature fluctuations.
With the ability to connect up to 6 batteries in parallel, users can expand their energy storage as needed. Optional upgrades such as Bluetooth, 4G, and Wi-Fi connectivity allow for real-time monitoring and control via mobile apps.
Additional Features
- Low Self-Discharge: Retains charge effectively with only 3% self-discharge per month.
- Temperature Protection: Maintains optimal performance in extreme temperature conditions.
- Advanced Monitoring: Optional Bluetooth, Wi-Fi, and RS485 upgrades allow remote monitoring.
- High Durability: ABS shell provides robust protection against external damage.
- Versatile Charging: Compatible with normal and fast chargers for flexible charging options.
Why Choose the 12.8V 200Ah LiFePO4 Battery?
The 12.8V 200Ah LiFePO4 Battery is an advanced, durable, and efficient energy storage solution that provides high power output, long life, and excellent safety features. Whether used for solar storage, backup power, or electric vehicles, this battery is designed for long-term reliability and superior performance.
How Does the 12V 200Ah LiFePO4 Battery Deliver Long-lasting and Safe Power?
The 12V 200Ah LiFePO4 battery provides 2560Wh of reliable energy with over 4000 deep cycles, advanced Battery Management System (BMS) protection, and a lightweight design. Ideal for solar energy storage, RVs, marine, and backup power, it offers fast charging, long lifespan, and environmental benefits, making it a superior alternative to lead-acid batteries.
What are the key specifications of the 12V 200Ah LiFePO4 battery?
This battery features a nominal voltage of 12.8V and a capacity of 200Ah, delivering approximately 2560Wh of usable energy. It supports continuous discharge currents up to 200A and peak currents up to 300A. The battery weighs around 20-25 kg and measures approximately 520 x 270 x 220 mm. It operates efficiently between 0°C and 45°C for charging and -20°C to 65°C for discharging.
How does the Battery Management System (BMS) enhance safety and performance?
The integrated BMS protects against overcharge, over-discharge, overcurrent, short circuits, and thermal runaway. It balances individual cells to optimize battery life and supports communication protocols like CAN, RS485, and Bluetooth for remote monitoring and diagnostics.
Why is LiFePO4 chemistry superior for the 12V 200Ah battery?
LiFePO4 chemistry offers excellent thermal stability, high safety, and a long cycle life exceeding 4000 cycles at 80% depth of discharge. It provides consistent voltage output, fast charging, and minimal maintenance, outperforming traditional lead-acid batteries.
Which applications benefit most from the 12V 200Ah LiFePO4 battery?
This battery is widely used in solar energy storage, RVs, marine applications, electric vehicles, and backup power systems. Its high energy density and modular design allow flexible integration for various power needs.
How long can the 12V 200Ah battery last in terms of cycle life and years?
With over 4000 cycles at 80% depth of discharge, the battery can provide reliable service for 10-15 years under typical conditions, reducing replacement frequency and operational costs.
What customization options does LiFePO4-Battery-Factory offer?
LiFePO4-Battery-Factory provides customization in capacity, voltage, communication protocols (CAN, RS485, Bluetooth), casing materials, BMS settings, and additional features like LCD displays, self-heating modules, and remote monitoring.
How should the 12V 200Ah battery be installed and maintained?
Installation involves secure mounting, correct polarity connections, and integration with compatible chargers and power management systems. Maintenance is minimal, focusing on periodic terminal cleaning and battery health monitoring via the BMS interface.
What safety certifications and standards does this battery meet?
The battery complies with UL1642, IEC62133, CE, RoHS, UN38.3, MSDS, and FCC certifications, ensuring adherence to international safety and environmental standards.
How does the 12V 200Ah LiFePO4 battery compare to lead-acid batteries?
Compared to lead-acid batteries, this LiFePO4 battery is lighter, offers 4-6 times longer cycle life, faster charging, and superior thermal stability. It requires no maintenance and lowers total cost of ownership despite higher upfront costs.
What environmental benefits does the LiFePO4 battery provide?
LiFePO4 batteries contain no toxic heavy metals or rare earth elements, reducing environmental hazards. Their long lifespan decreases waste, and their stable chemistry minimizes fire and leakage risks, making them eco-friendly energy storage solutions.
Chart: Comparison of 12V 200Ah LiFePO4 vs Lead-Acid Batteries
| Feature | LiFePO4 Battery | Lead-Acid Battery |
|---|---|---|
| Cycle Life | >4000 cycles | 300-500 cycles |
| Weight | 20-25 kg | 50-60 kg |
| Energy Density | High | Low |
| Maintenance | Minimal | Regular |
| Safety | High (BMS protected) | Moderate |
| Environmental Impact | Low | Higher (toxic materials) |
| Charging Time | Faster | Slower |
Chart: Key Specifications of 12V 200Ah LiFePO4 Battery
| Specification | Value |
|---|---|
| Nominal Voltage | 12.8V |
| Capacity | 200Ah |
| Energy | 2560 Wh |
| Continuous Discharge | 200A |
| Peak Discharge Current | 300A |
| Weight | 20-25 kg |
| Dimensions | 520 x 270 x 220 mm |
| Operating Temperature | 0°C to 45°C (charge) |
| Discharge Temperature | -20°C to 65°C |
| Cycle Life | >4000 cycles (80% DOD) |
